Automatic Concrete Paver Making Machine

In China, Hongjia Machinery welcomes you to purchase automatic concrete paver making machines from our factory. Through ultrasonic, laser or mechanical sensing devices, the pavement elevation is detected in real time and the signal is accurately fed back to the control system. Then, the system automatically adjusts the extension of the hydraulic cylinder to change the inclination and height of the leveling plate or forming template. The body is equipped with a spiral distributor that can evenly spread the concrete laterally. Combined with the vibrating system, it can be compacted and formed in one go.

Manufacturing process

The automatic concrete paver making machine's energy output and forming cycle control capabilities. Through the variable frequency excitation system, a vertical excitation force is generated, enabling low water-cement ratio dry-hard concrete to reach the required liquefied state in an extremely short time, effectively removing internal trapped air and improving the density and freeze-thaw resistance of the pavement bricks. The closed-loop control of the hydraulic system has an extremely fast response speed. Even under rapid cycle conditions, it can ensure that the peak pressure and holding time of each pressing are highly consistent, eliminating the dispersion of brick strength caused by pressure fluctuations. The overall action cycle has been meticulously optimized in terms of timing. The processes of spreading, vibrating, pressing and demolding are seamlessly connected, ensuring the formation of high-quality pavement bricks while achieving extremely high production efficiency of the forming machine.

Parameters

Main product specification & output
Type(solid/hollow)	Specification(mm)	Pcs/mould	S/Mould	Pcs/Hour	Pcs/8hours
	390x190x190	15	13-18	3000-4153	24000-33230
	240x115x53	80	13-18	16000-22153	128000-177230
	225x112.5x60	50	18-23	7826-10000	62608-80000
	200x100x60	55	18-23	8608-11000	68869-88000

Advantages and Features

1. Fully automatic operation

No need for manual intervention. It adopts a fully automatic design and can automatically complete all operations. It is simple and easy to use, saving time and labor costs.

2. High production capacity

Strong production capacity. It can produce up to 6,000 blocks per hour, making it an ideal choice for large-scale construction projects.

3. Mold quality

The Automatic Concrete Paver Making Machine uses dry 4-axis vibration technology, a high-pressure hydraulic system, and precise vibration. It can produce high-density, high-strength, smooth-surfaced, and durable brick products in a short time, fully meeting industry standards.

4. Material and quality

The main unit is made of high-strength rectangular steel and new technology seals, with strong wear resistance and extended service life.

5. Intelligent control

Equipped with imported Siemens PLC control system, Siemens touch screen, and electrical components, it operates precisely and reliably.

6. Easy maintenance

The design takes into account maintenance convenience. It is equipped with an automatic lubrication system to ensure that all moving parts are fully lubricated, reducing downtime and lowering maintenance costs.

Logistics advantages

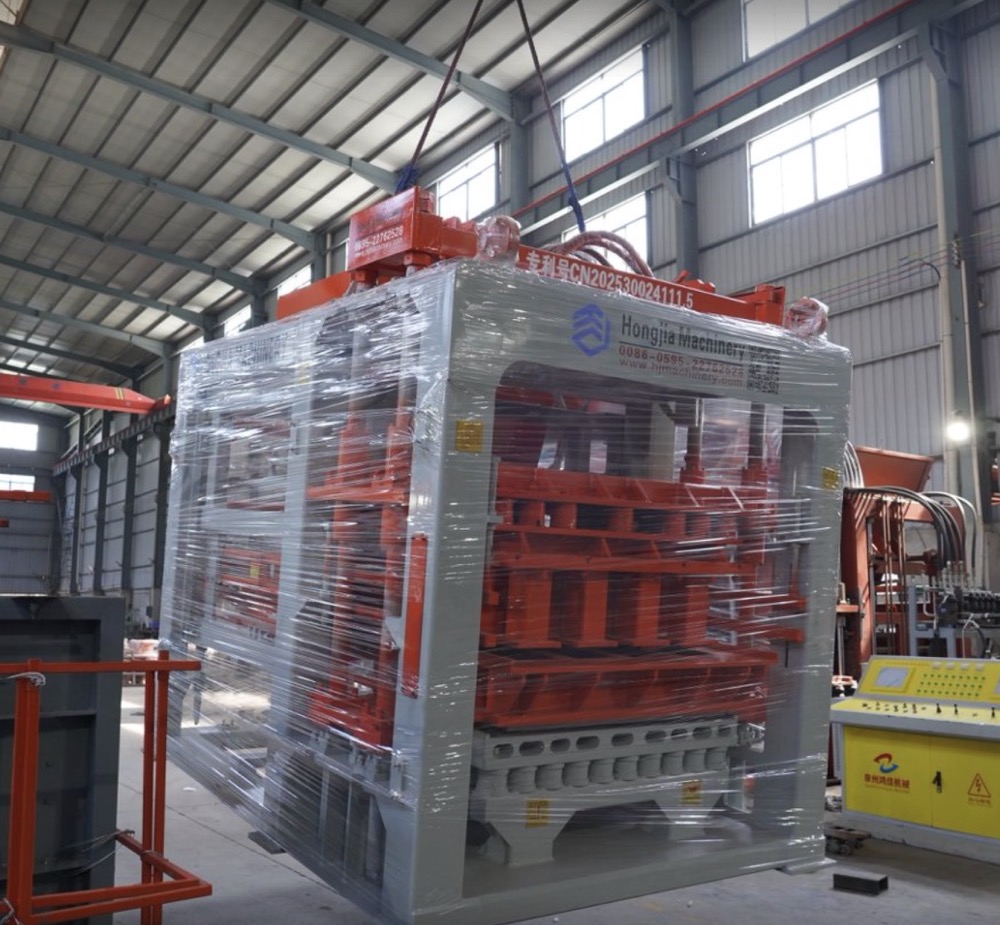

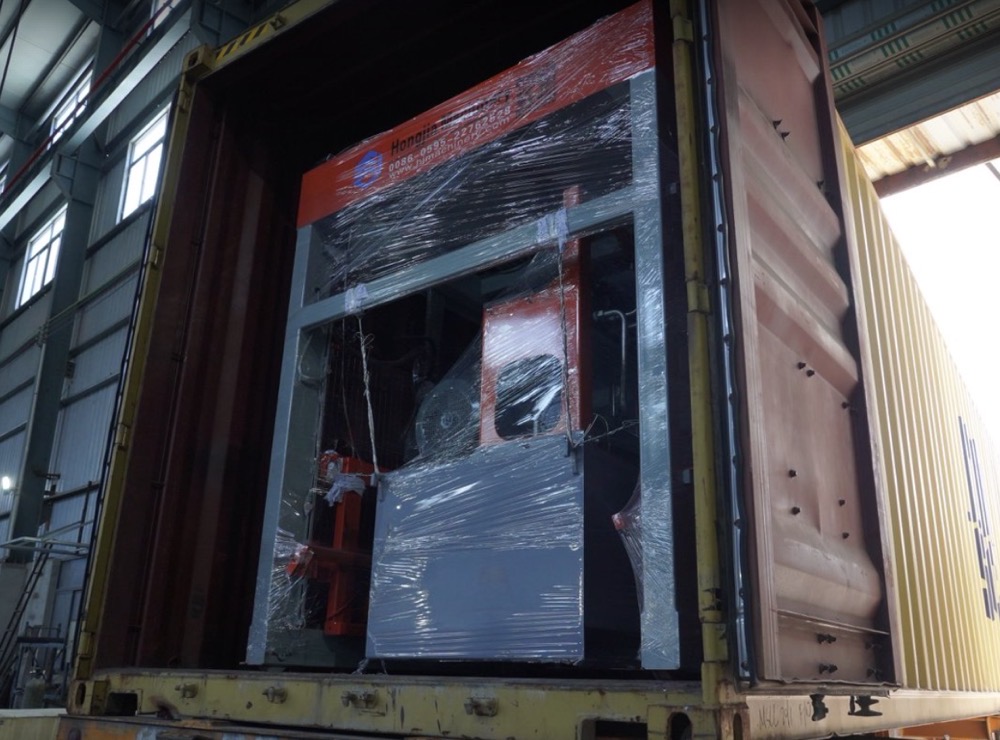

For this Automatic Concrete Paver Making Machine, which is extremely heavy, has a large vibration module and is equipped with a large number of precision molds, Hongjia Machinery has developed a special disassembly and high-level protection plan that complies with international standards for heavy machinery for ocean transportation. After the core vibration platform components are disassembled, they are wrapped with a film. The exposed vibration motor shaft and bearing seats are wrapped and bound with multiple layers of high-density flame-retardant anti-rust cloth to prevent salt fog erosion during ocean transportation. The huge main frame is treated with overall sandblasting for rust removal and multiple layers of anti-corrosion coating. All hydraulic pipeline interfaces and electrical junction boxes are fully sealed with waterproof sealant. The precision pavement bricks molds and base plates are placed in moisture-proof three-layer board boxes, and the internal parts are completely wrapped and fixed with shock-absorbing sponge. The main machine base is reinforced with channel steel to form a grid-like rigid structure to ensure that there will be no displacement within the container. During each loading process, we will take photos to save and attach the code of the container.
