Automatic Interlocking Block Making Machine

Hongjia Machinery's Automatic Interlocking Block Making Machine is specifically designed for the production of concrete bricks, blocks and pavement bricks. It is manufactured in strict accordance with the IOS9001 heavy industry standard and can ensure operational performance. It is frequently used in various engineering fields such as construction, landscaping and slope protection. As a supplier, we can offer reasonable prices and provide excellent support from our after-sales team.

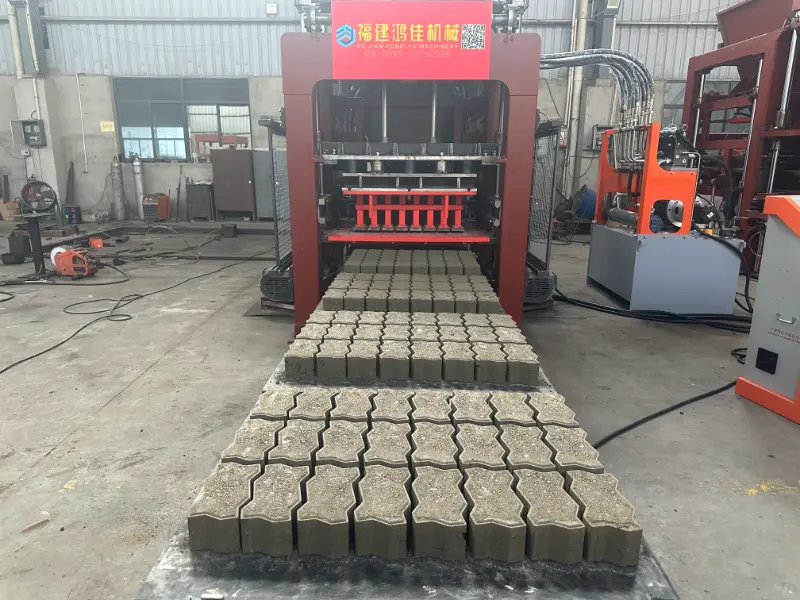

Description of the exterior structure

This Automatic Interlocking Block Making Machinee adopts a four-column guiding or gantry-type high-stiffness closed-frame structure. The entire machine is welded from thick high-grade steel plates. The base is rigidly connected to the pre-installed foundation through large-section solid steel columns to absorb the huge excitation reaction force. The top of the equipment is equipped with a large-diameter rapid filling main hydraulic cylinder, and auxiliary hydraulic cylinders are distributed on both sides for lifting the mold frame and locking the press head. Its most notable physical feature is the independent high-frequency vibration box integrated on the forming platform surface. This box is flexibly isolated from the main frame through high-strength rubber air springs, which can not only transfer the excitation force 100% to the mold, but also effectively prevent the vibration waves from being transmitted to the frame, thereby avoiding fatigue cracking of the structural weld seams. In addition, the fabric trolley track of the equipment and the forming main machine are highly integrated, shortening the material transportation distance.

Parameters

Our quality

1. Vibration mode and excitation force

Choose a model that combines table vibration and mold vibration. The interlocking blocks have complex shapes, and a strong and uniform excitation force is required to ensure the compactness of the grooves without any cracks.

2. Hydraulic system stability

The hydraulic valves (using servo motors and imported servo oil pumps) have low noise and generate little heat, reducing the cost of control and hydraulic fuel consumption. This determines whether the equipment can operate without faults for a long time.

3. Mold material and processing technology

The mold determines the quality and lifespan of the blocks. High-quality molds are made of high-manganese steel, treated with carburizing and quenching, and processed by wire cutting. They are wear-resistant and have smooth demolding.

4. Manufacturer's after-sales service and formula support

The formula of the Automatic Interlocking Block Making Machine is more meticulous than that of ordinary bricks. As an excellent equipment manufacturer, we not only sell the machines but also provide mature raw material formula support and process guidance.

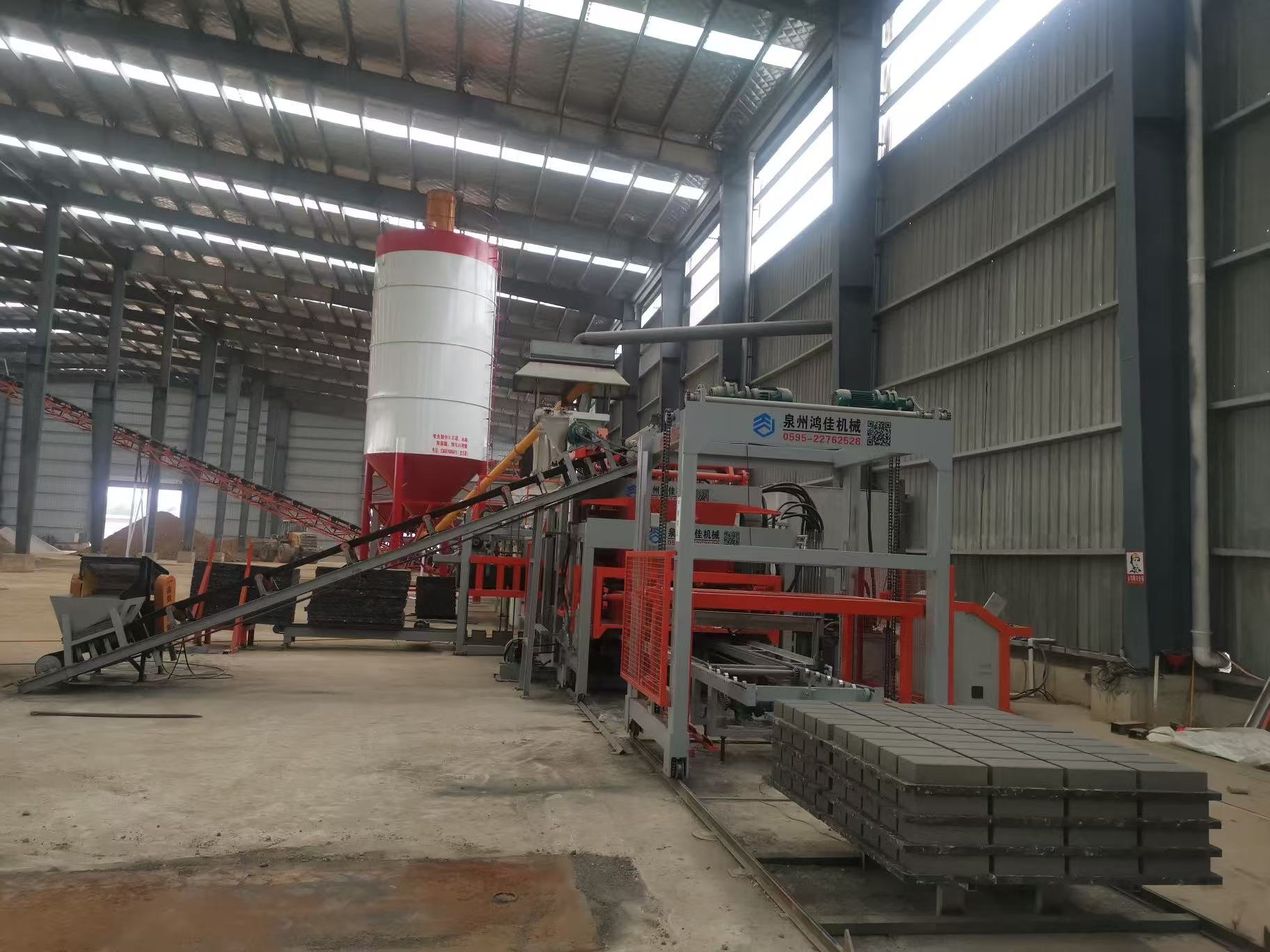

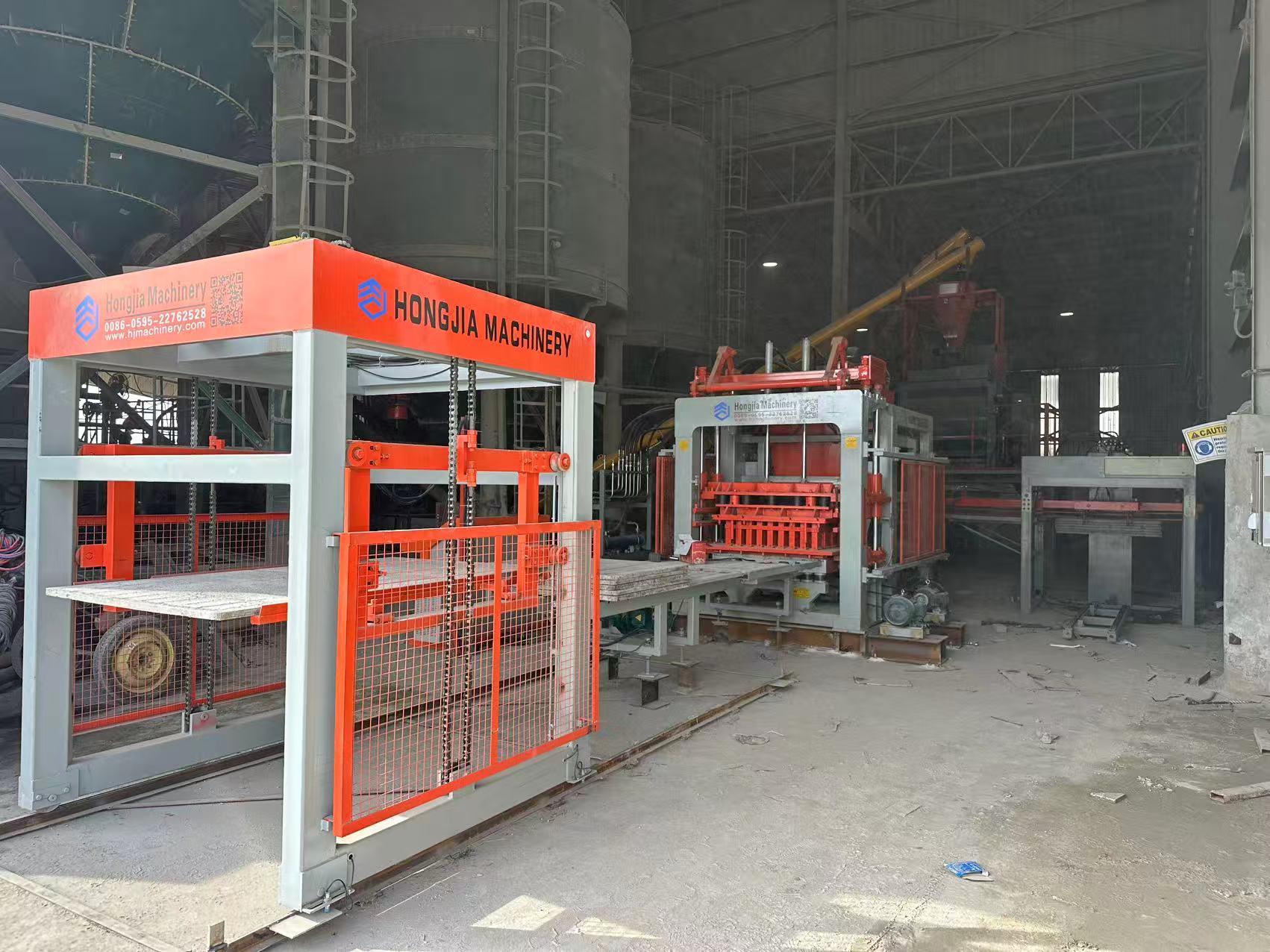

Customer on-site application

Hongjia Machinery dispatched professional personnel to an overseas location for a month to assemble and debug the Automatic Interlocking Block Making Machine. This was done to ensure stable operation. It adopted advanced foreign hydraulic technology and a dual hydraulic drive system, equipped with the original high-performance vibration system. The vibration was stronger, the forming cycle was shorter, the product strength was higher, which further improved the product density and effectively solved the impact on the product caused by the thickness error of the support plate.
