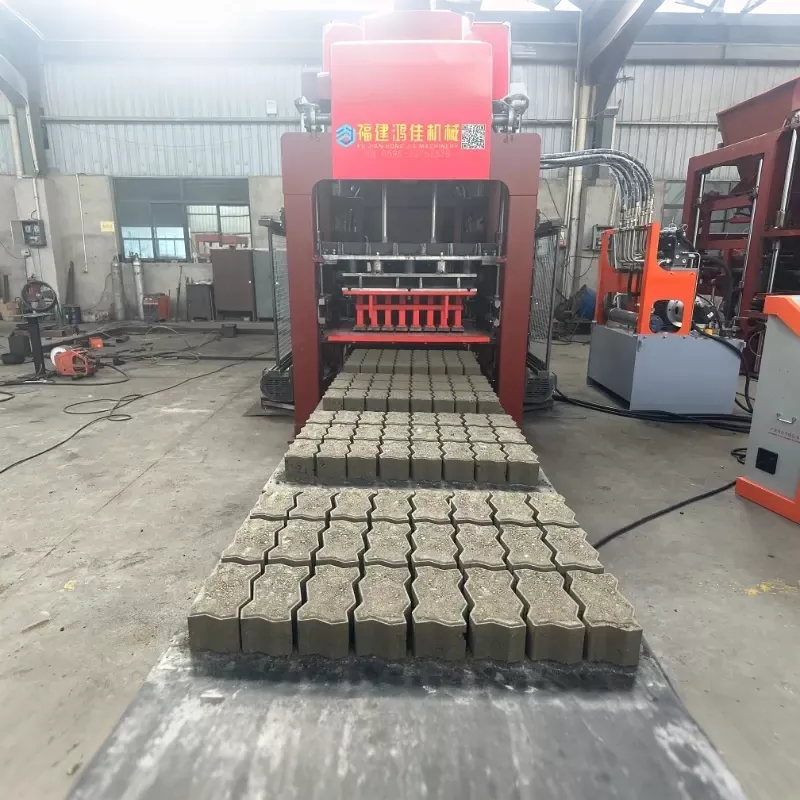

Paver Making Machine

As a manufacturer and exporter in China, Hongjia Machinery has optimized the hydraulic circuit and electrical control system for the Paver Making Machine to ensure that the machinery can still operate at high frequency continuously under harsh conditions such as high temperatures and dusty environments. From single machines to complete line automation solutions, we provide full-process manufacturing and technical support.

Production manufacturing process flow

Steel inspection and cutting: All incoming steel undergoes spectral analysis and tensile testing, and is precisely cut using a CNC plasma cutting machine.

Frame welding and stress relief: more than 30 years and more than 20 scientific and technical personnel. After welding, it enters a heat treatment furnace to eliminate welding stress.

Precision machining: The mold and the core drive shaft are milling and grinding by a large CNC machining center to ensure that the tolerance is controlled within 0.02mm.

Surface carburizing and heat treatment: The forming molds undergo gas carburizing heat treatment, with hardness reaching HRC60-62, significantly increasing the wear resistance.

Assembly and no-load/lifted-load testing: After the Paver Making Machine is assembled, it must undergo at least 48 hours of continuous no-load vibration and pressure testing within the factory. Only after passing the test can it be shipped out.

Technical Parameters (Specification)

Product Structure

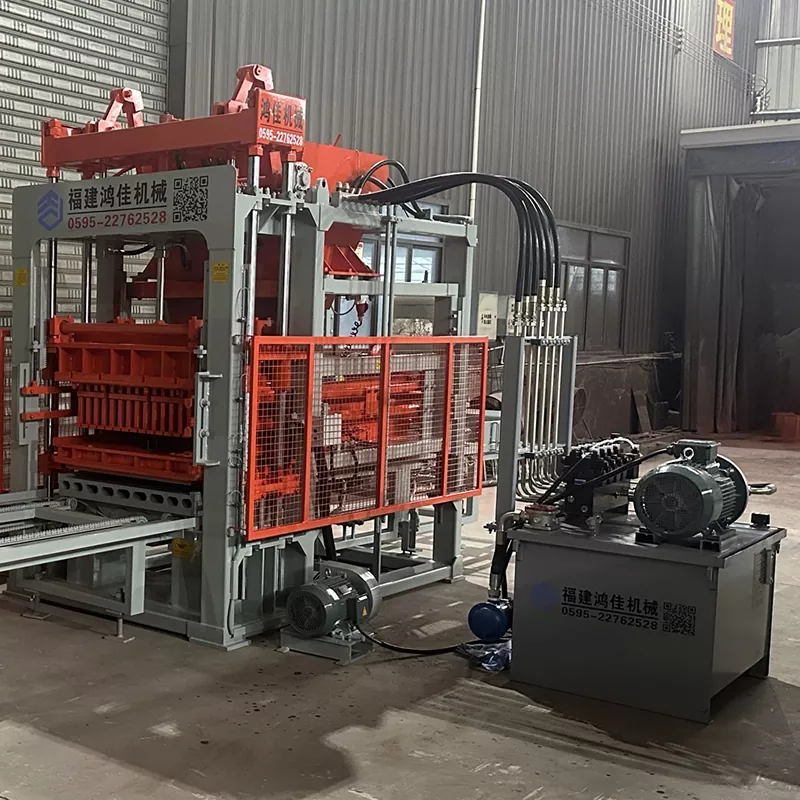

The Paver Making Machine of model HJD6000 is equipped with a heavy-duty welding frame, main hydraulic pressing system, high-frequency vertical vibration box, forced feeding device, secondary color fabric system, automatic brick output and stacking mechanism, as well as an independent control cabinet, all of which can be customized. Hydraulic station with external design, easy to heat dissipation and daily inspection; The electrical control box is separated from the main engine, effectively avoiding the physical impact of the vibration source on the electrical components.

Application scenario

Municipal engineering: permeable bricks for sidewalks, curb stones for blind paths, colored paving bricks for urban squares.

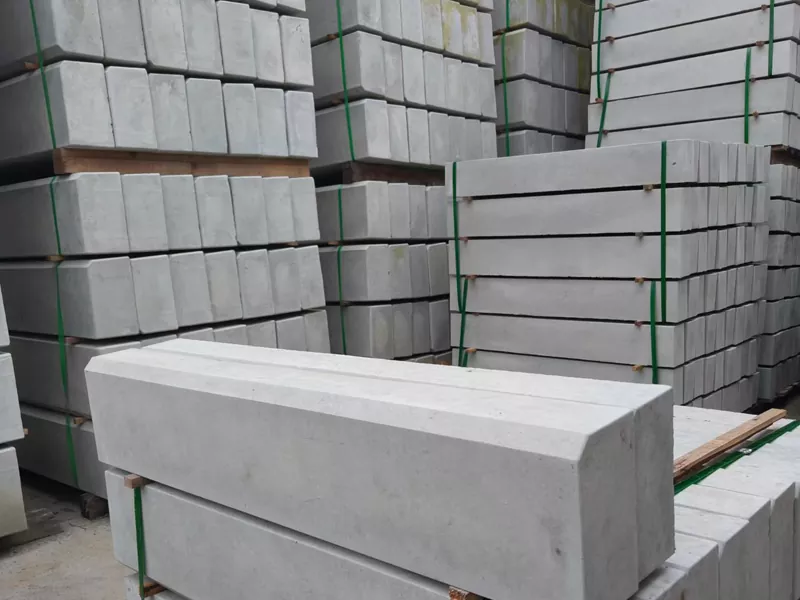

Transportation infrastructure: curb stones on both sides of highways, lock block bricks for slope protection of expressways, covers for drainage ditches.

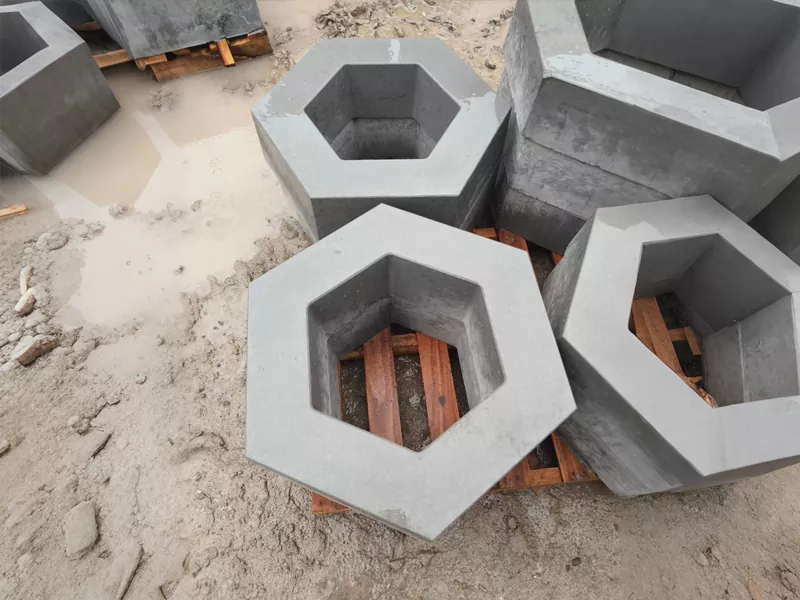

Landscaping and real estate: grass planting bricks for residential areas, landscape water ripple bricks, anti-slip walkway bricks for courtyards.

Differential Advantage

Compared with equipment of the same price in the market, the difference of Hongjia Machinery's Paver Making Machine lies in "adequate material usage" and "low failure rate". The thickness of our frame steel plate is 15%-20% higher than the ordinary one. The sealing rings of the cylinder of the molding machine are all imported parts, which solves the problem of numerous oil leaks. Meanwhile, the control software is independently written by our own engineers, without complex encryption locks, making subsequent upgrades and parameter adjustments more convenient. We support all-round customization.

FAQ

What are the required raw material ratios for producing permeable bricks?

Generally, for the base layer, crushed stones with a particle size of 3-5mm (about 70%), cement (about 20%) and a small amount of sand are used; for the surface layer, fine sand, cement and pigments are employed. Hongjia will provide you with free basic mixing advice according to the raw material samples purchased locally.

Will you provide installation services after the machine arrives at the site?

We can dispatch experienced after-sales engineers to the site to guide the foundation construction, equipment installation and commissioning, and train your operators until qualified products are produced. Our personnel will leave only after the production is completed.

If the equipment breaks down, how are the components replaced?

Most of our electrical and hydraulic components use Schneider, Siemens and other brands, which can support independent development. For special molds or mechanical structural components, we will arrange express delivery within 24 hours after receiving the notification.
