Automatic Hollow Block Machine

HONGJIA MACHINERY is located in Quanzhou. We specialize in manufacturing automatic hollow block machines. We can customize the configuration according to the customer's requirements. Using materials such as sand, gravel, fly ash, slag, and construction waste as raw materials, through the combination of hydraulic transmission, mechanical vibration and PLC intelligent control, the machine can automatically complete the feeding, compaction, demolding and brick production processes.

Send Inquiry

Product Description

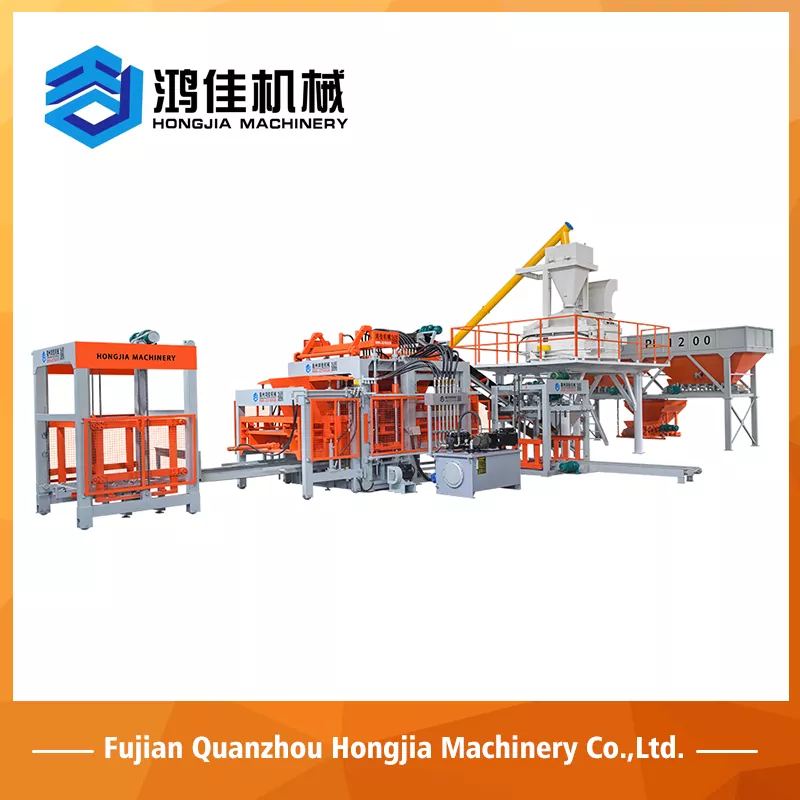

In China, HONGJIA MACHINERY manufactures the QZ-1300 type automatic hollow block machine. It can independently complete the processes from material feeding to vibration, hydraulic compaction, and demolding, thereby reducing labor costs. It features high automation, high production capacity, and low energy consumption.

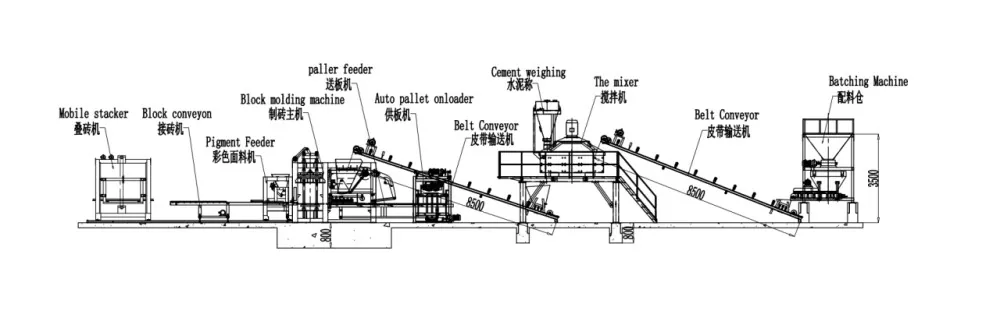

Mainconfiguration

1	Block Making Machine	7	Walking Block Stacker	13	Screw Conveyor
2	Board Feeder	8	Automatic Pallet Feeder	14	Mixing Central Control System
3	Block Discharger	9	Color Face Material Feeder	15	Block Machine Pallets
4	Hydraulic Power Unit	10	Concrete Mixer	16	Cement Silo
5	PLC Control System	11	Two-Bin Batching Machine	17	Forklift
6	Belt Conveyor	12	Cement Weigher	18	Wheel Loader

Product introduction:

1、host machine made of high-strength rectangle steel and new technics seal, can stand wear and tear.

2、Pass through precise vibration and hydraulic pressure, can be produced high-density and high strengih brick products

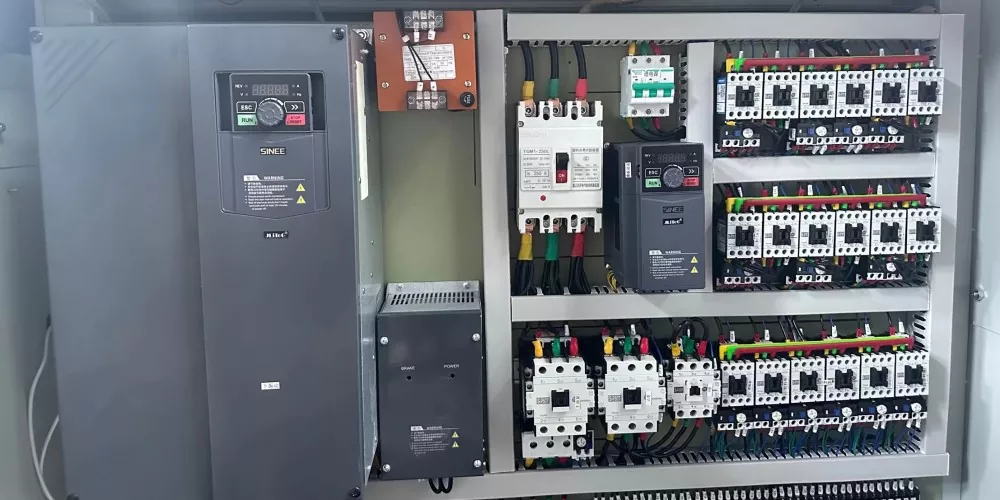

Using Siemens PLC control system, Siemens touch screen and imported electrical parts

3、Well-designed hydraulic system with Electro hydraulic proportional valve and Solenoid Valveof High-Performance, controls and monitors oil flow and 4、hydraulic pressure dynamically andaccurately each process of block and brick making completed perfectly.

5、The QT4-24 block making machine has been optimized for the recycling of solid waste (construction waste, fly ash, and waste residue), featuring low noise and low energy consumption, and meeting global environmental protection standards.

Yield comparison table

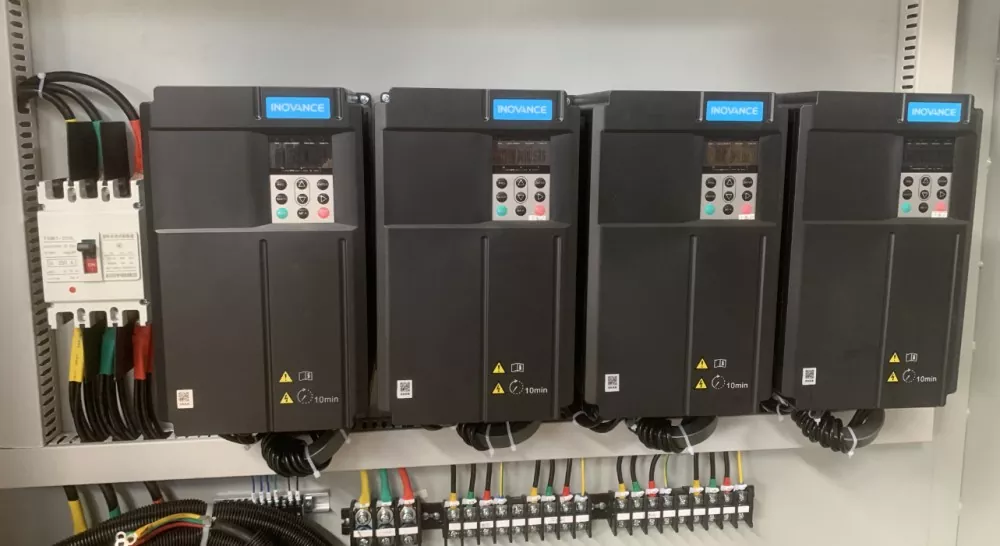

The automatic hollow brick machine uses a frequency converter to control the vibration motor, allowing for free adjustment of the vibration frequency and amplitude to produce hollow bricks, solid bricks, pavement bricks and various other materials, achieving the desired molding effect.

Product Name

Brick sample

Product Size

PCS/mouid

8hour/shift

Hollow Block

390×190×190mm

19200-26400

Solid Brick

240×115×53mm

115200-160000

Paving Brick

240×115×90mm

57600-80000

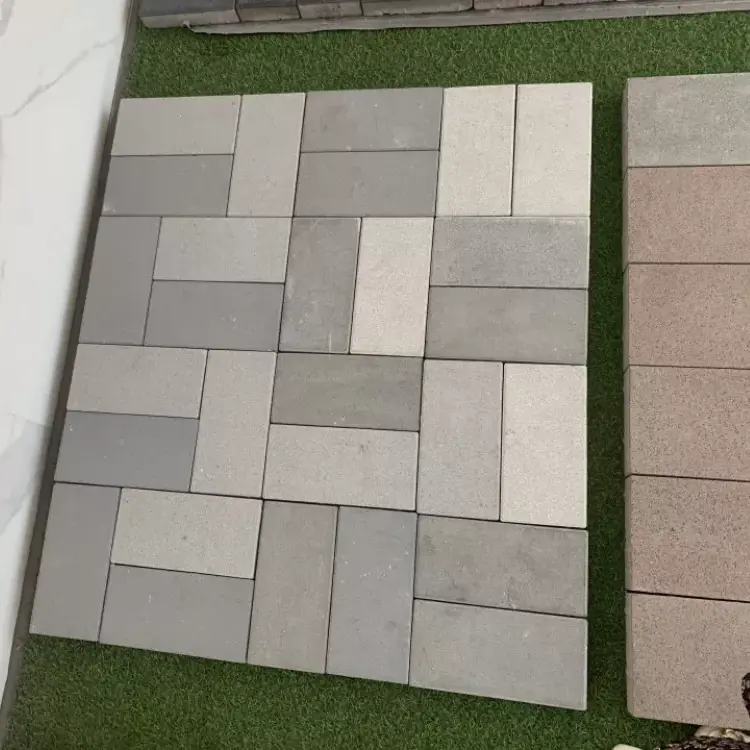

colored bricks

200×100×60mm

62400-80000

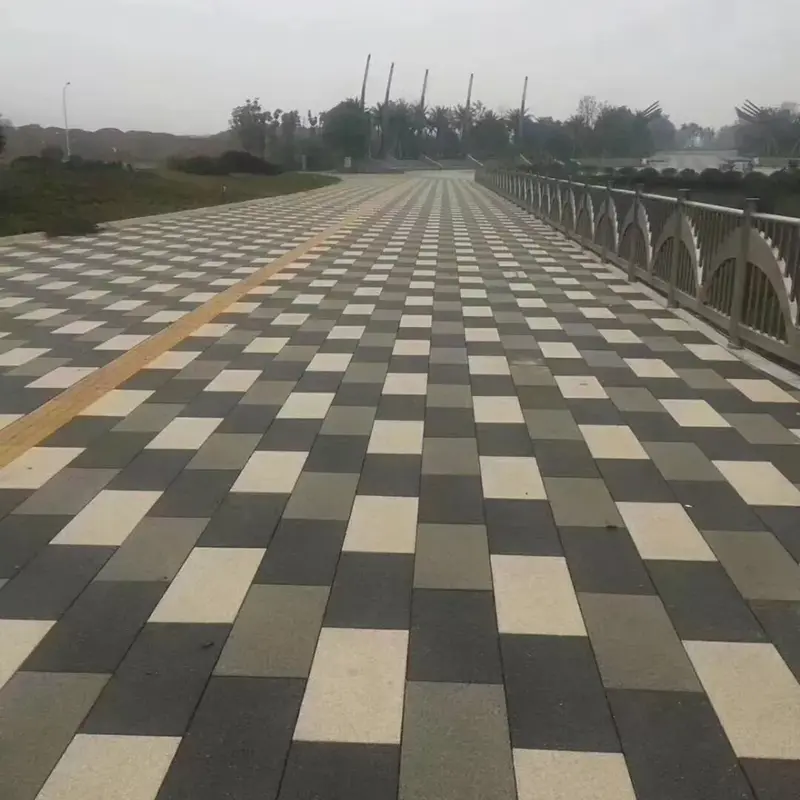

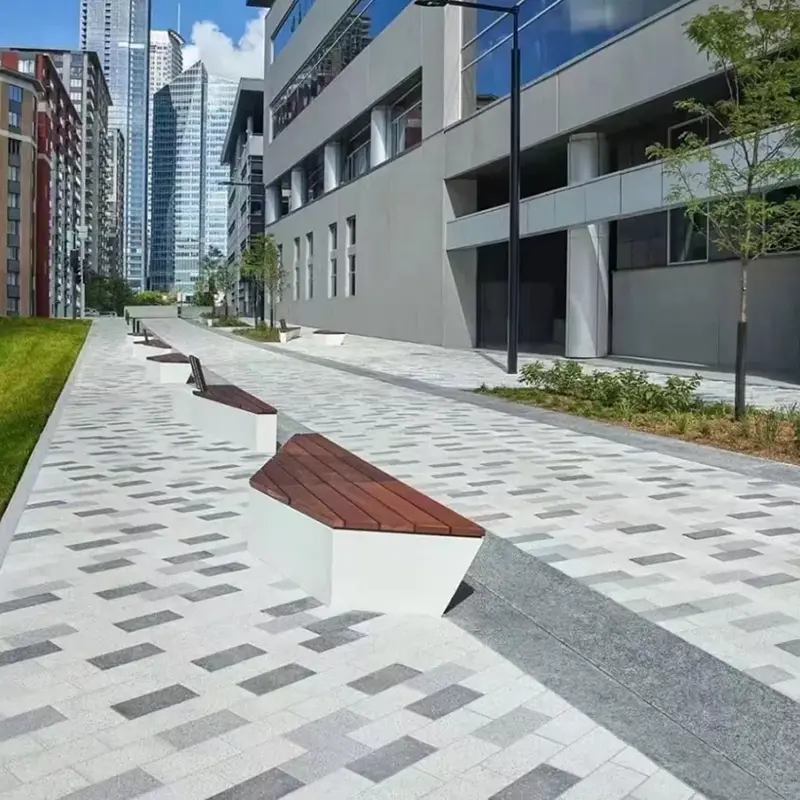

The pavement bricks have been laid out on the site.

Field inspection and acceptance of the bricks produced by the qtj4 25 block making machine. The bricks were actually laid out on the site, and the flatness was controlled extremely well. There was no warping or unevenness in large-scale laying. The brick surface was completely undamaged and not loose at all, and it had excellent load-bearing capacity.
