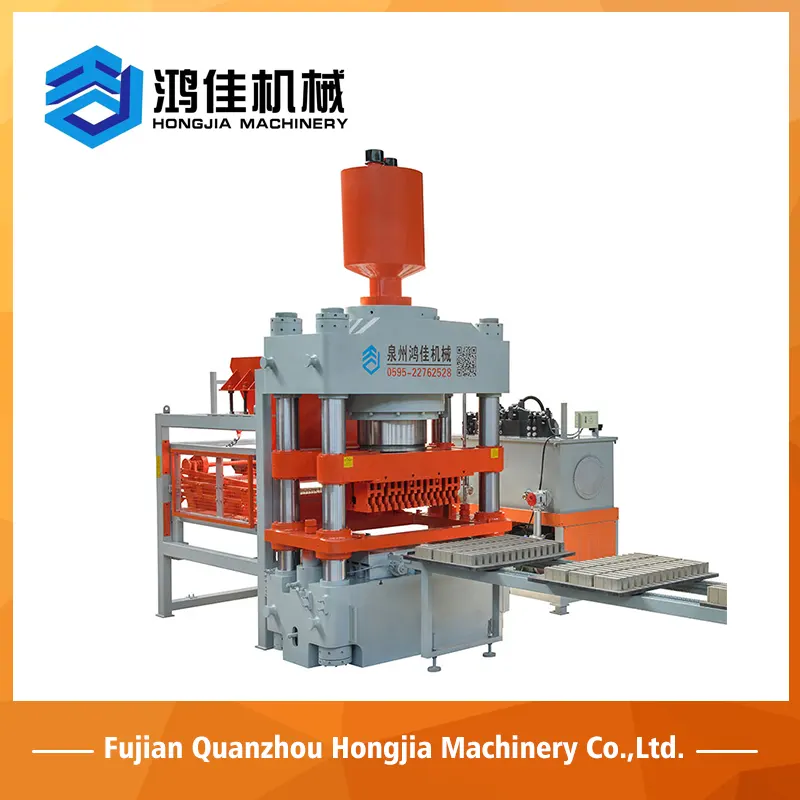

Automatic Hydraulic Brick Making Machine

Hongjia Machinery, as the leading manufacturer and exporter of Automatic Hydraulic Brick Making Machines in China, has designed our high-quality brick machines to simplify the production process of concrete bricks, enhance production efficiency, significantly reduce labor costs, and enable you to produce dozens of high-quality bricks in just a few minutes, thereby achieving a substantial increase in productivity. Our products, with competitive prices, excellent quality and being domestically produced, are your reliable partners.

Brick-making process

Our Automatic Hydraulic Brick Making Machine has extremely strong adaptability to difficult-to-form materials and extremely high forming density indicators. Since it has abandoned the high-frequency vibration assistance, the equipment relies entirely on the hundreds of tons or even thousands of tons of static axial pressure applied by the main oil cylinder to squeeze out the air inside the materials. This pure static pressure process makes the internal crystal structure of the finished bricks combine extremely tightly, significantly reducing the water absorption rate. It is particularly suitable for producing high-grade load-bearing bricks or water-resistant bricks for civil engineering. The automatic cycle timing control of the equipment is very precise. From the advancement of the spreading vehicle, the rapid descent of the press head for mold closure, slow pressure application, setting time for holding pressure, to the lifting of the mold frame for demolding, the entire action chain is precisely timed by PLC and double-checked by sensor position feedback. Even during long-term continuous operation, the repetition accuracy of the action timing can be maintained within a very small error range, and there will be no system disorder caused by action delay.

Why choose us?

Hongjia Machinery's Automatic Hydraulic Brick Making Machine features an automatic hydraulic system, producing bricks with extreme precision. Unlike traditional equipment that requires manual intervention, our hydraulic system operates fully automatically, ensuring the consistency of quality for each finished product.

Our equipment is capable of manufacturing a variety of concrete building blocks, such as standard blocks, perforated blocks and hollow blocks, etc. Whether for wall construction or road paving, we can provide you with high-quality blocks of precise size and regular shape that are suitable for actual applications and meet the construction requirements.

Our high-quality brick production equipment, which simplifies the production process, enhances efficiency and reduces costs, enables maximum output while consuming extremely low energy. This solution is both reliable and cost-effective, saving operational expenses.

How to maintain

In order to ensure the long-term maintenance of our Automatic Hydraulic Brick Making Machine in good running condition, we must focus on the monitoring of hydraulic oil contamination and the maintenance of mechanical guidance accuracy. The operator must check the tank liquid level and oil temperature before starting every day, and must cooperate with professional testing instruments to count the particles of the hydraulic oil in use every three months. Once the NAS pollution level exceeds the standard, the oil return and oil suction filter element must be replaced immediately. At the mechanical maintenance level, a manual grease gun must be used to inject an appropriate amount of high-temperature lubricating grease into the centralized lubrication points of the four-column guide sleeves every week, and the wear gap of the mold frame guide plate must be observed. When performing any maintenance on hydraulic valve blocks or pipelines, the depressurization operation procedure must be strictly followed, and before entering the space below the press head, a high-strength safety lock rod must be used at the physical position to rigidly fix the movable crossbeam to prevent fatal mechanical falls caused by accidental power outages or pipeline depressurization.
