Automatic Hydraulic Press Brick Making Machine

If you are looking for the top brick-making machine that can efficiently produce high-quality cement bricks and concrete bricks, then you can choose Hongjia Machinery. The Automatic Hydraulic Press Brick Making Machine simplifies the production process and creates unprecedented high-quality bricks. It has the advantages of high compressive strength, smooth surface, and good water permeability, and its pricing is highly competitive, offering excellent value for money. What's more, its user-friendly interface and intuitive design ensure that you don't have to worry about hiring additional staff to operate it, allowing you to achieve efficient production with ease.

Core advantages and features

1. Self-developed control system: Equipped with a self-developed control system, it seamlessly integrates with the hydraulic system and mechanical components. The system has powerful self-diagnosis and guidance functions, enabling real-time monitoring and display of the equipment's operating status.

2. Advanced hydraulic and vibration technology: The Automatic Hydraulic Press Brick Making Machine adopts high-performance hydraulic technology from abroad, constructing a dual hydraulic drive system and a high-performance vibration system. The vibration is powerful and forceful.

3. Imported programmable controller: An imported programmable controller is used, combined with a color touch screen. Users can easily conduct human-machine communication through the intuitive interface, set parameters and provide guidance. The operation is simple and convenient, and one can get started without complex training.

4. Precise mechanical structure: A suspended bidirectional positioning material cart is adopted, with low running resistance, effectively solving the impact on product quality caused by the thickness error of the support plate, and ensuring the accuracy of product dimensions.

Characteristics

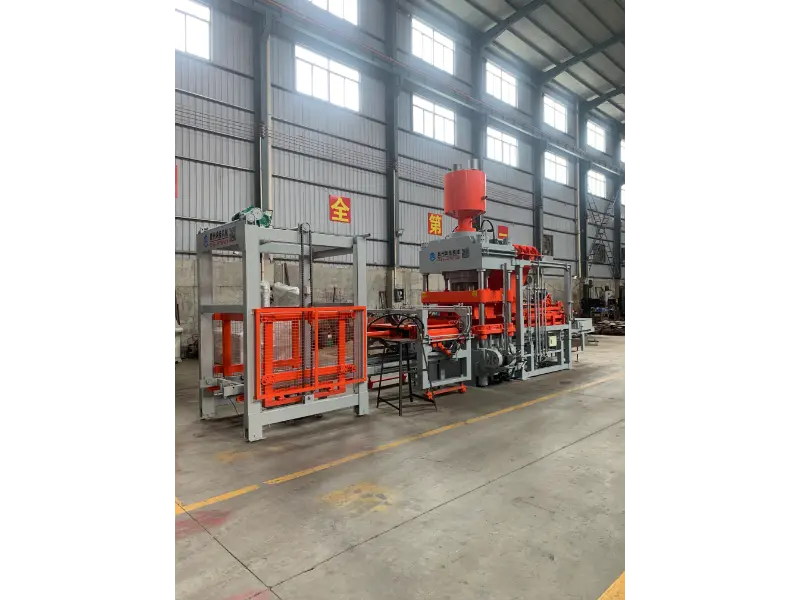

This Automatic Hydraulic Press Brick Making Machine adopts a typical three-beam four-column prestressed tension rod structure in its appearance. The upper crossbeam, sliding crossbeam and the base with a vibration table are firmly connected by four thick solid alloy steel columns, forming a closed force-bearing framework with excellent seismic performance. The front and side of the equipment are equipped with large-diameter main hydraulic cylinders, demolding hydraulic cylinders and mold frame lifting hydraulic cylinders. All high-pressure pipelines are centrally arranged using high-grade seamless steel pipes, and are covered with protective metal nets on the outside. The most visually striking feature of this device is the large-capacity hydraulic oil tank and integrated hydraulic pump station located at the top. This integrated design of the pump station and the main unit reduces the complexity of on-site pipeline connections. In addition, the operation console of the equipment is usually independent of the main frame and is connected to the main unit through industrial cables, allowing operators to monitor the molding and brick-extraction actions within a safe viewing range.

Parameters
